Hand Tap and Reamer Wrench Design Pack

This pack contains the complete SolidWorks design data for an adjustable hand tap and reamer wrench (also known as a tap handle or bar wrench). Designed by Meisterfabrik's mechanical and manufacturing engineers, these files provide every detail a skilled craftsman or maker needs to fabricate and assemble a reliable tool.

Our Philosophy: True Ownership Through Open Design We believe in Design for Repairability (DfR). Hand tools often fail or become obsolete because replacement parts are unavailable or proprietary. By releasing the full engineering data, we enable real ownership: you can repair a worn jaw, modify the handle length for better leverage, machine a custom version in your preferred material, or scale the design for specific tap sizes, all without depending on manufacturers. This is self-determination in the workshop, giving you full control over one of the most essential threading tools.

Created by Meisterfabrik Engineers Every file reflects the rigorous work of our mechanical and manufacturing teams. The design prioritises smooth, secure gripping of square and round shanks, excellent leverage, and ease of fabrication using common workshop methods (CNC or manual machining).

What's Inside the Pack:

• SolidWorks Part Files — Detailed models of the adjustable jaws, body, handle bar, and all individual components, ready for inspection, modification, or direct manufacturing.

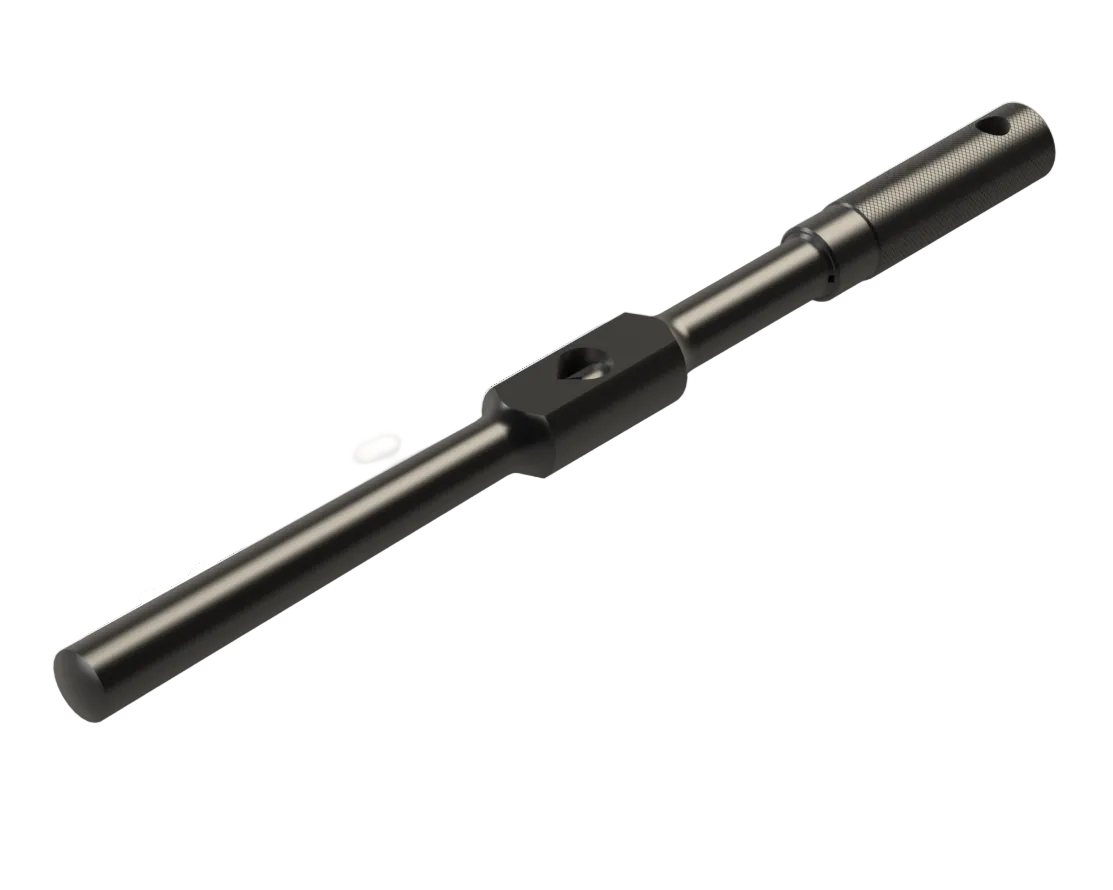

• SolidWorks Assembly Files — A fully constrained assembly showing the complete tool with proper fit, adjustment mechanism, and fastener locations.
• SolidWorks Drawing Files — Professional 2D engineering drawings for every part and the full assembly, complete with dimensions, tolerances, GD&T, material specifications, and manufacturing notes.
• Engineering Drawing PDF — Ready-to-print PDF versions of all drawings, ideal for workshop use, CNC programming, or sharing with machinists without requiring SolidWorks software.


Practical Applications This wrench is ideal for hand tapping, reaming, and using screw extractors. The construction is intentionally straightforward and workshop-friendly:

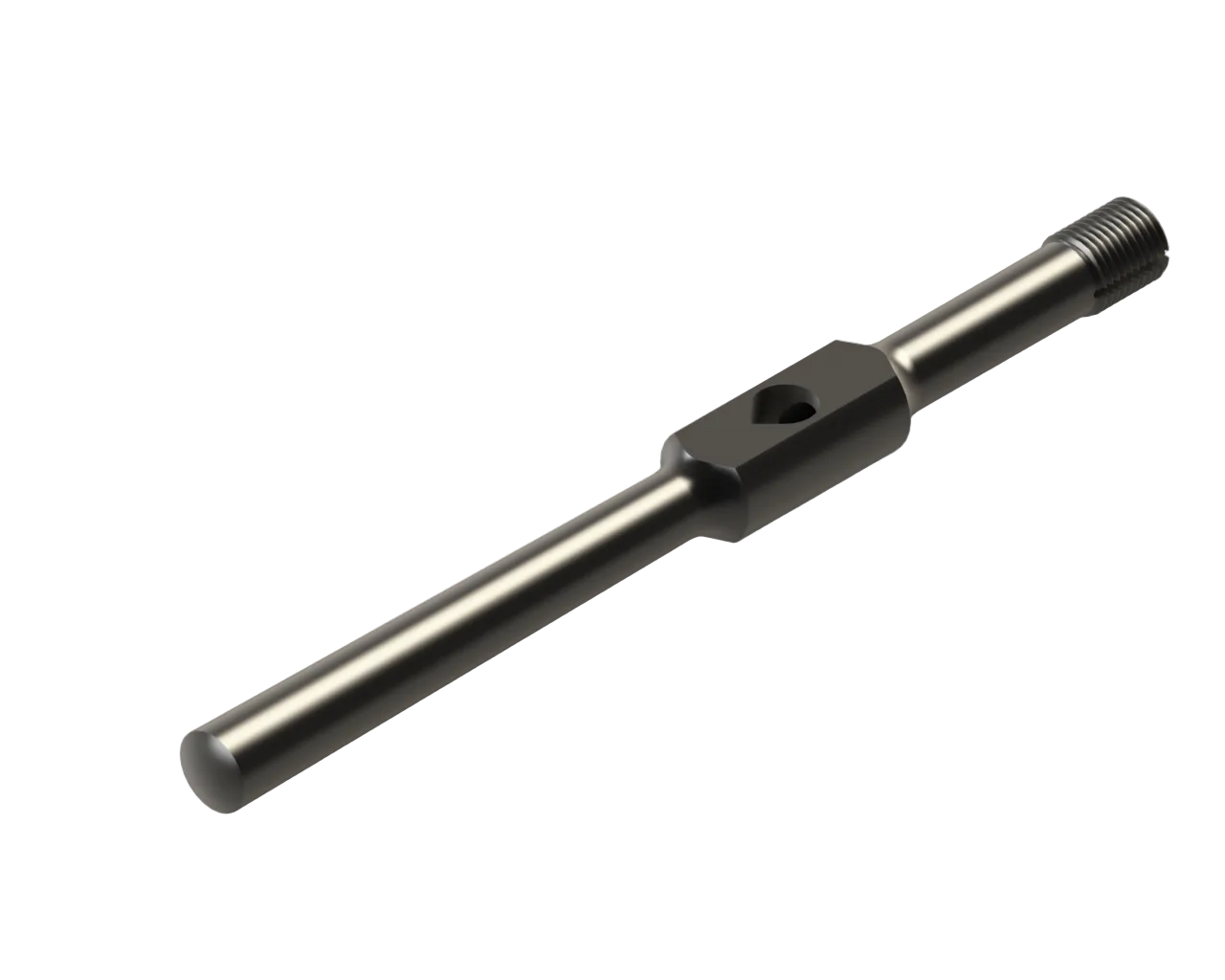

• Wrench Assembly — Designed for machining from steel, tool steel, or stainless steel.
• Handle — Simple bar design for easy sourcing, manual machining, and maximum leverage.

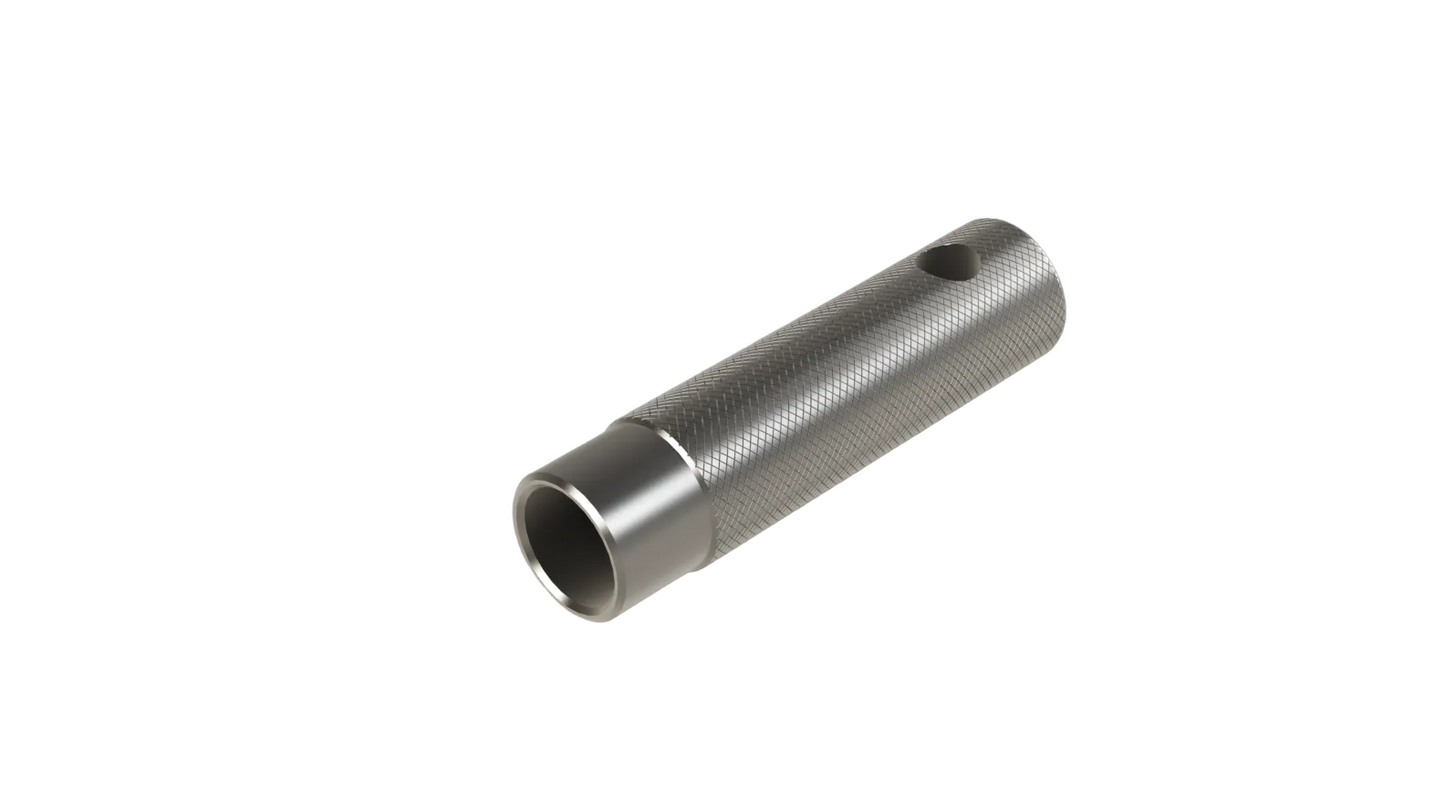

• Adjustment Sleeve — Simple, reliable mechanism for adjusting tension on the plunger and fixed jaw, enabling a wide range of tap and reamer shank sizes.

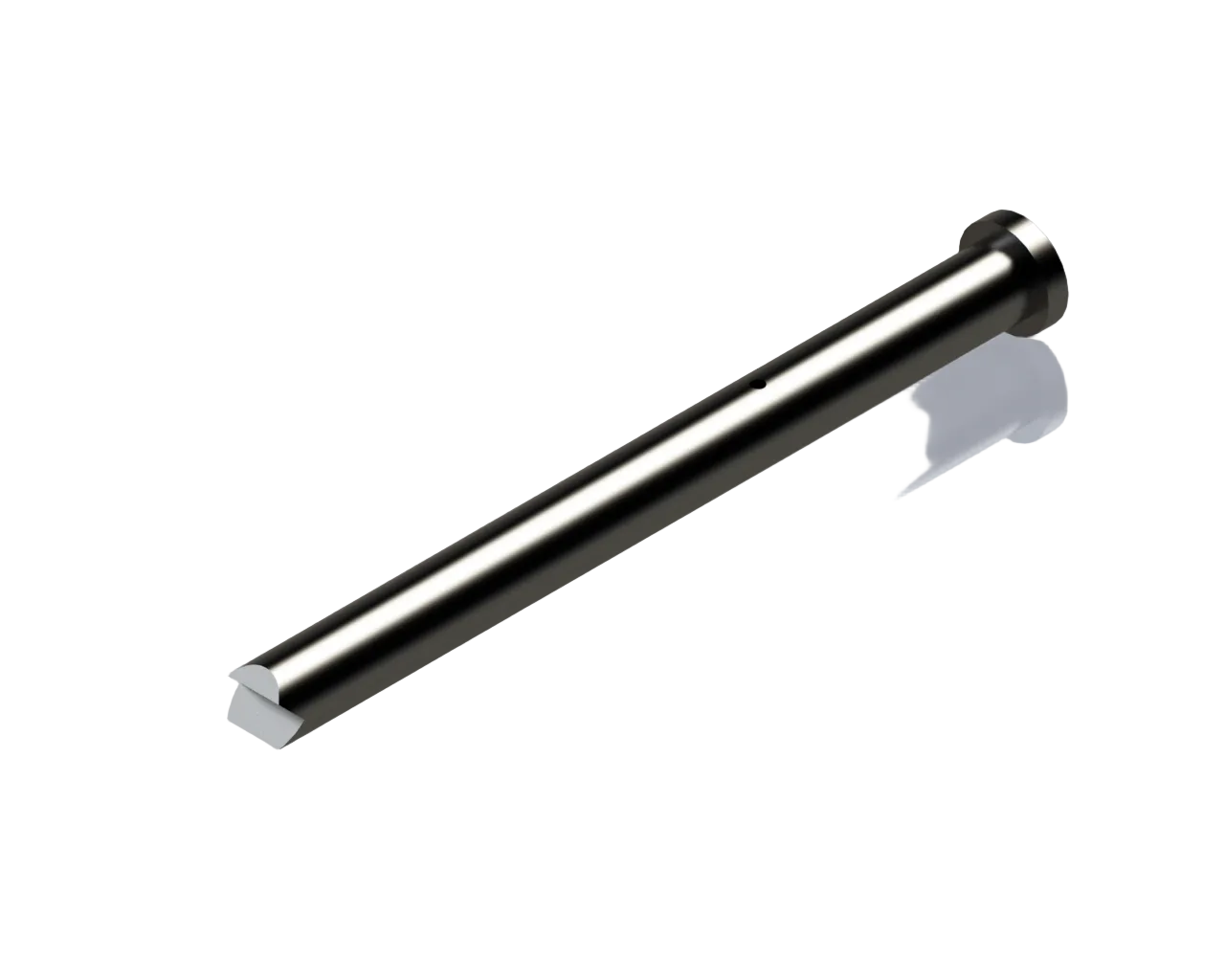

• Plunger — Precision component for secure locking of the jaws, engineered for smooth adjustment and long-term durability.


Why Choose This Design Pack? Whether you're outfitting a machining station, building a complete set of custom tap wrenches, or replacing an old commercial tool that no longer fits your needs, this pack gives you a complete SolidWorks blueprint. You aren't just buying files, you're gaining the knowledge to build (and maintain) a better tool tailored to your workshop.

This is open hardware done right: transparent, reproducible, and crafted by engineers for machinists and makers who refuse to be dependent on closed supply chains.

Good For:

• Hand tapping and reaming operations in metalworking
• Fabricating custom tap wrenches sized for your specific tap range
• Replacing broken or hard-to-find commercial tap handles
• Educational projects in mechanical design and toolmaking
• Modifying handle length, jaw range, or materials for unique setups
• Long-term maintenance and spare parts production
