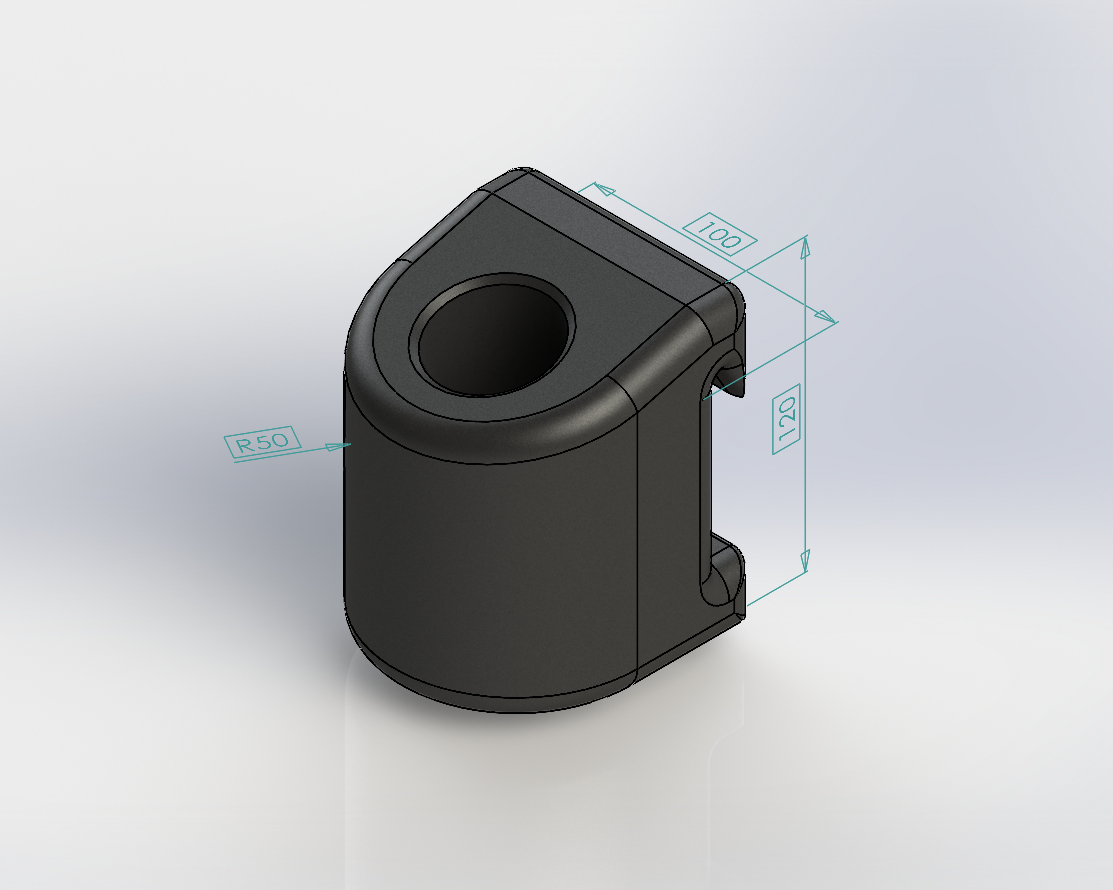

SK40 Tool Holder French Cleat Mounted Storage Unit Design Pack

This pack contains the complete product data set for a clean, professional SK40 tool storage unit designed for French cleat wall mounting. The design was created with the same practical, no-nonsense mindset that defines great workshop organization. Keeping your valuable CNC tooling secure, accessible, and neatly stored on the wall.

Our Philosophy: True Ownership Through Open Design We believe in Design for Repairability and practical workshop empowerment. Instead of relying on expensive proprietary tool organizers that eventually break or disappear, this open design gives you full control. Print it, CNC it, modify the spacing, or scale it to fit your exact needs, all without depending on commercial availability. This is self-determination in the workshop: keeping your tools organized on your own terms.

Created by MEISTERFABRIK engineers, every file reflects the careful work of our mechanical design team. We didn’t just throw together a basic tool storage unit, we engineered a precise, rigid, and clean-looking solution that securely cradles SK40 (and compatible BT40-style) tool holders while integrating seamlessly with standard French cleat systems. The result is a digital twin that performs reliably in real-world shop environments.

What's Inside Each Pack:

• SolidWorks Part File (.SLDPRT) – A fully parametric, fully editable model allowing easy customization of wall thickness, clearance, or overall dimensions.

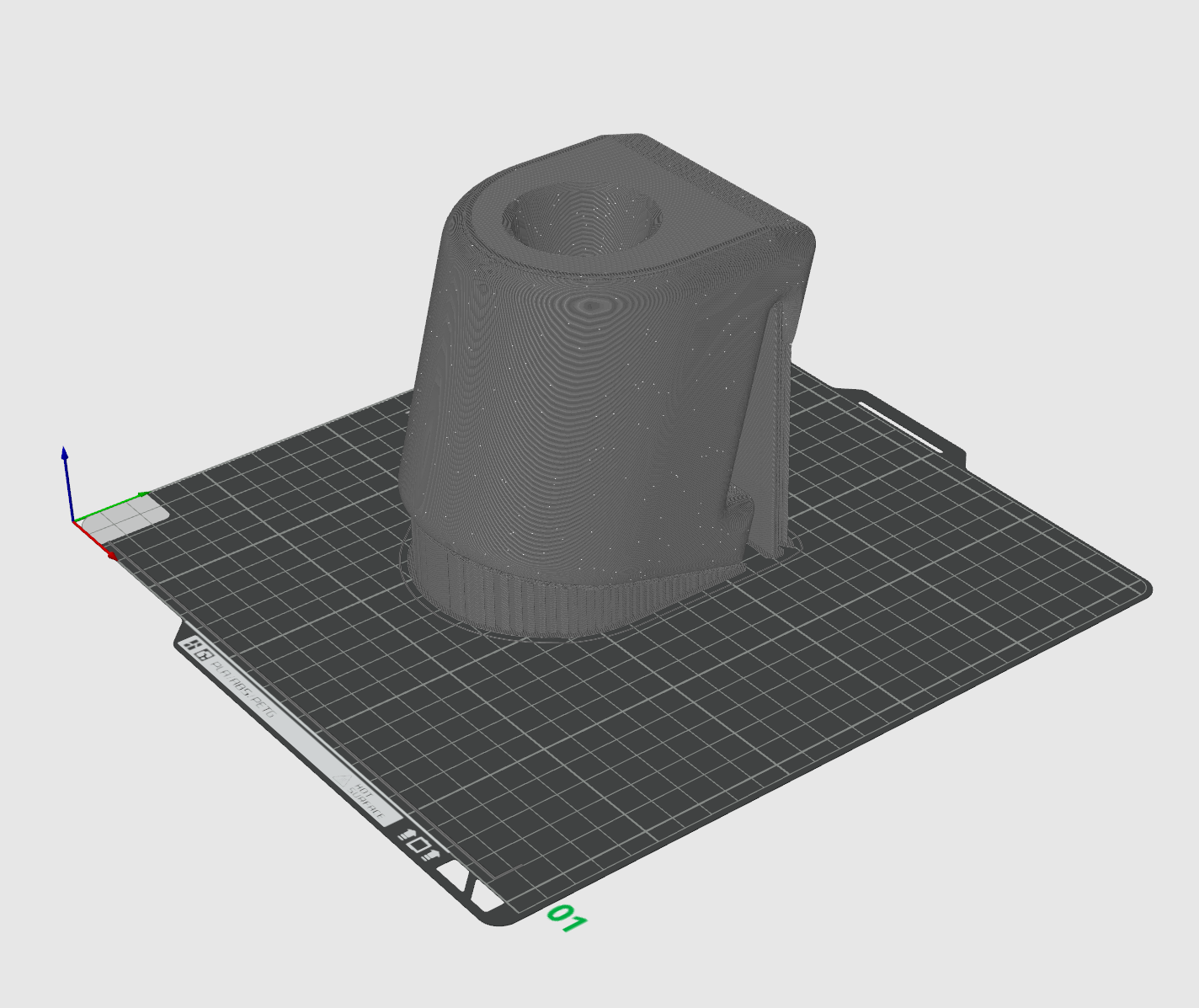

• High-Quality STL File – Ready for direct 3D printing on any FDM or resin printer with excellent surface quality and strength.

Practical Applications

This French cleat mounted SK40 tool holder is perfect for professional machine shops, home CNC setups, and makerspaces:

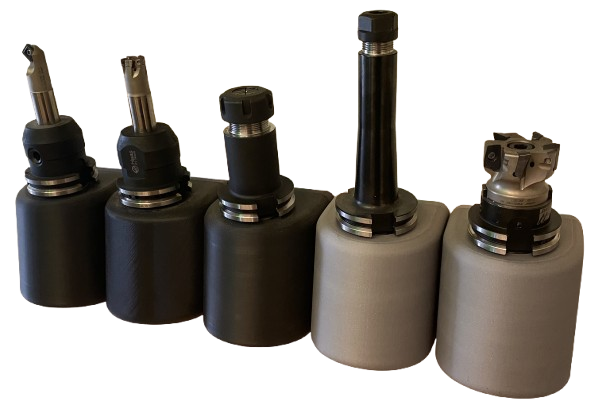

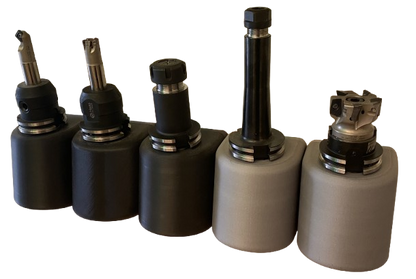

• Secure Tool Storage – Holds SK40 taper tool holders firmly with a precise fit that prevents tipping or accidental drops.
• Space-Saving Wall Organization – Uses standard French cleats for quick, tool-free installation and easy repositioning anywhere on your wall system.
• Customizable Design – Easily modify the model to hold multiple tools, adjust spacing, or adapt it for other taper sizes.
• Professional Appearance – Clean, minimalist design that looks sharp in any workshop environment.

Why Choose This Design Pack?

You aren’t just buying files, you’re gaining complete ownership of a practical workshop solution. Whether you’re a CNC machinist looking to tidy up your tool wall, a hobbyist building an efficient shop, or someone who simply wants reliable, repeatable tool storage, this pack delivers professional-grade data to bring the design to life exactly how you need it.

This is open hardware done right: transparent, reproducible, and engineered for makers who refuse to settle for flimsy or overpriced tool organization.

Good For:

• Organizing SK40 and BT40-style CNC tool holders on French cleat walls
• Maximizing vertical space in garages, shops, and tool rooms
• Creating modular and expandable tool storage systems
• 3D printing or CNC fabricating custom tool holders
• Workshop upgrades focused on efficiency and professionalism
