International Harvester Cub Cadet Utility Box Design Pack

Authentic Restoration-Ready Open Hardware for Classic Tractors

This pack contains the full product data set for a classic utility box meticulously reverse-engineered from original International Harvester equipment drawings. Designed to bring history back to life, these files give you everything needed to fabricate a historically accurate, durable storage solution for your vintage Cub Cadet.

Unlike generic aftermarket parts, this design captures the exact dimensions, styling, and mounting geometry of the original era. We've combined historical fidelity with modern engineering precision to ensure your restoration is authentic yet functional.

Our Philosophy: True Ownership Through Open Design We believe in Design for Repairability (DfR). Vintage equipment often sits idle because original parts are lost to time or discontinued. By releasing the complete engineering suite derived from original blueprints, we enable true ownership: you can fabricate an exact replacement, modify the layout for modern tools, or adapt the mount to a different frame without relying on scarce original inventory. This is self-determination in action—keeping your classic machinery running on your own terms.

Created by Meisterfabrik Engineers Every file reflects the rigorous work of our mechanical and manufacturing teams. We didn't just copy a photo; we reverse-engineered the original drawings to create a digital twin that respects the past while meeting modern fabrication standards. The design balances vintage aesthetics with the structural integrity needed for real-world field work.

What's Inside Each Pack:

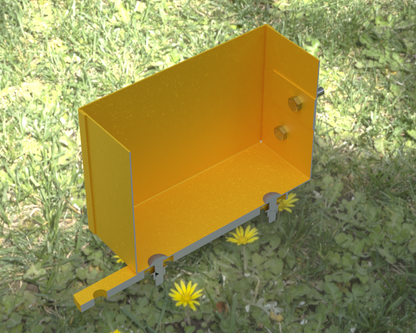

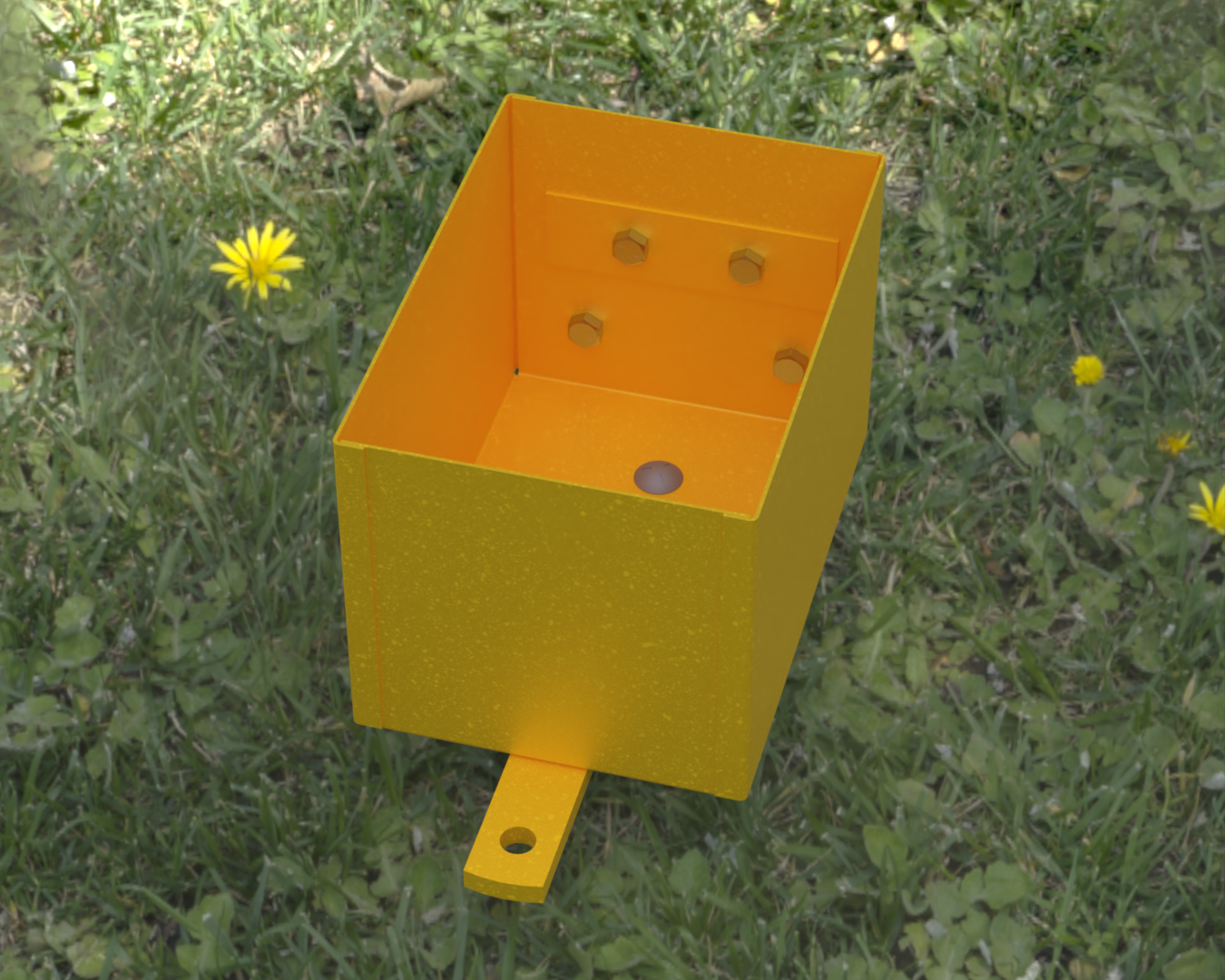

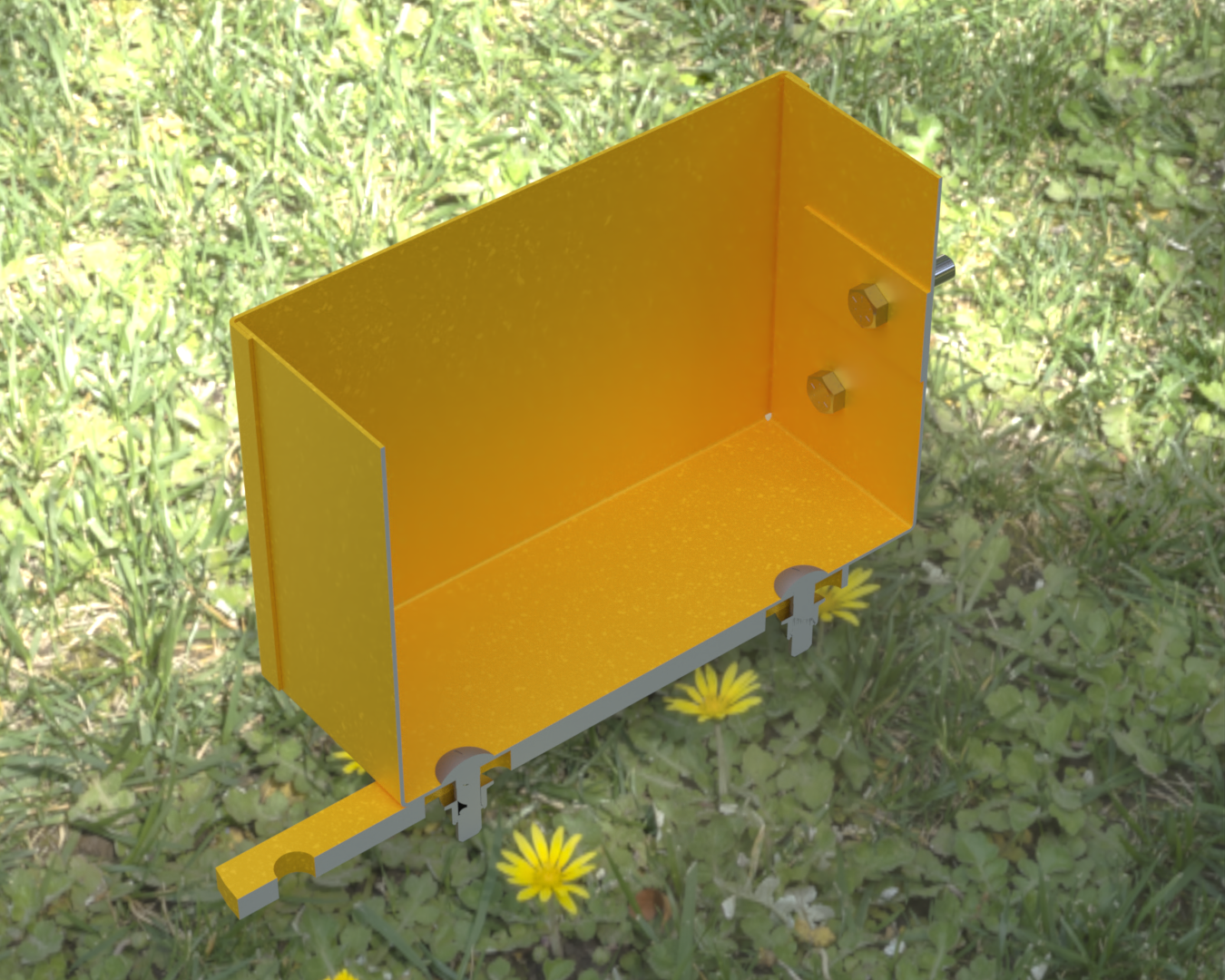

• SolidWorks Part Files – Accurate models of the box body, fasteners, and mounting brackets, derived directly from original specifications.
• SolidWorks Assembly Files – A fully constrained assembly showing how all components fit together, including fastener locations and clearance checks.
• SolidWorks Drawing Files – Native 2D drawings with critical tolerances, bend lines, and weld notes, mirroring the detail of original engineering docs.
• PDF Engineering Drawings – Print-ready documentation for the workshop floor, including exploded views, bills of materials (BOM), and assembly instructions.

Practical Applications

This design is perfect for authentic restoration projects where historical accuracy matters:

• Original Specifications – Dimensions and styling are faithful to the original IH Cub Cadet era.
• Sheet Metal Fabrication – The box body is optimized for standard sheet metal bending and welding, replicating the original manufacturing process.
• Custom Adaptation – While historically accurate, the digital files allow for easy modification if you need to adjust for non-original frames or modern accessories.

Why Choose This Design Pack? You aren't just buying a file; you are reclaiming a piece of agricultural history. Whether you are a restorer aiming for show-quality accuracy or a farmer needing a reliable, period-correct storage solution, this pack provides the professional-grade data to bring the original design back to life.

This is open hardware done right: transparent, reproducible, and crafted by professional engineers for makers who refuse to let their equipment become obsolete.

Good For:

• Authentic restoration of International Harvester Cub Cadet tractors
• Fabricating period-correct storage solutions for vintage equipment
• Replacing rusted or missing original utility boxes with exact replicas
• Educational projects in historical engineering and sheet metal design
• Modifying storage capacity while maintaining original aesthetics
