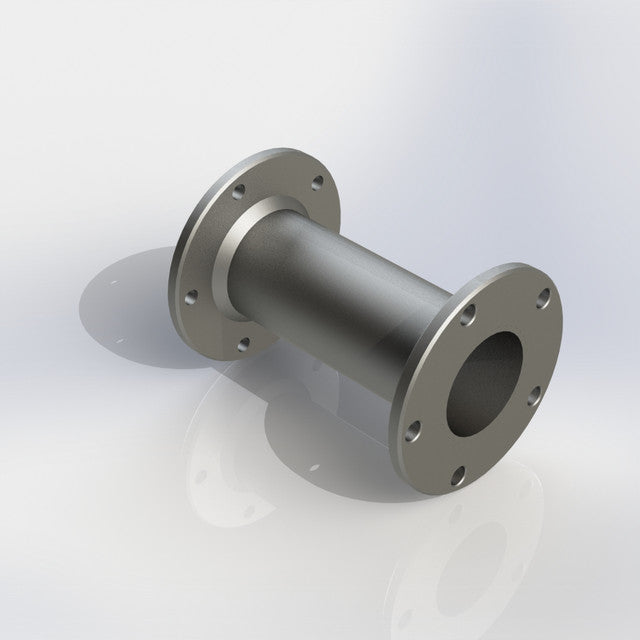

IH Cub Cadet Dual Rear Wheel Spacer Design Pack

This pack contains the complete product data set for the IH-381187-R11 dual rear wheel spacer, meticulously reverse-engineered from original specifications. Originally brought to life in 2001 by Wyatt Compton—an enthusiest whose relentless curiosity captured the essence of a rugged, practical design—this engineering data is now modernized and shared openly. We honor that spark by providing the full technical suite needed to recreate this iconic component.

Our Philosophy: True Ownership Through Open Design We believe in Design for Repairability (DfR). Vintage equipment often sits idle because original parts are lost to time or discontinued. By releasing the complete engineering suite derived from historical blueprints, we enable true ownership: you can fabricate an exact replacement, modify the spacing for custom tires, or adapt the mount to a different frame without relying on scarce original inventory. This is self-determination in action—keeping your classic machinery running on your own terms.

Created by Meisterfabrik Engineers Every file reflects the rigorous work of our mechanical and manufacturing teams, building upon Wyatt Compton's foundational reverse-engineering. We didn't just digitize a sketch; we validated the geometry to ensure it meets modern fabrication standards while respecting the original design intent. The result is a digital twin that honors the past while delivering the precision needed for today's workshops.

What's Inside Each Pack:

• SolidWorks Assembly Files – A fully constrained assembly of the spacer and mounting hardware, ready for inspection or modification.
• SolidWorks Part Files – Detailed models of the flange, weldments, and structural components, derived directly from original specifications.
• STEP Models – Universal 3D formats compatible with any CAD system, ensuring seamless integration into your workflow.
• PDF Engineering Drawings – Print-ready documentation for the workshop floor, including detailed views of flange holes, weldment notes, and critical dimensions.

Practical Applications

This design is perfect for restoring legendary IH models like the 108 or 149, where stability and traction are paramount:

• Enhanced Stability – The dual-wheel configuration grips the earth with the force of a bull, ideal for heavy-duty garden work.
• Custom Fabrication – The detailed specs for flange holes and weldments allow you to craft custom dual rims tailored to your specific needs.
• Historical Accuracy – Dimensions and styling are faithful to the original IH era, ensuring your restoration looks authentic.

Why Choose This Design Pack? You aren't just buying a file; you are reclaiming a piece of agricultural history and the spirit of the enthusiest who first reverse-engineered it. Whether you are a restorer aiming for show-quality accuracy or a farmer needing a reliable, period-correct upgrade, this pack provides the professional-grade data to bring the original design back to life.

This is open hardware done right: transparent, reproducible, and crafted by professional engineers for makers who refuse to let their equipment become obsolete.

Good For:

• Restoring International Harvester Cub Cadet garden tractors (e.g., 108, 149)
• Fabricating custom dual-wheel setups for enhanced traction
• Replacing rusted or missing original spacers with exact replicas
• Educational projects in historical engineering and fabrication
• Modifying wheel spacing for unique tire combinations
