MF1024
Friction Stir Welding (FSW) Tool Set, FS1, Size 1-3
–
–
–
–
MF1024
Friction Stir Welding (FSW) Tool Set, FS1, Size 1-3
Net Price
2 422,50 kr
Product Group
Friction Stir Welding Tool
Product data
Product Details
The MEISTERFABRIK FS1 Tool Set includes one each of Size 1, Size 2 and Size 3. Together they cover weld depths up to 8 mm in aluminium and other non-ferrous metals. Each tool is precision-machined from AISI H13 tool steel and designed for standard manual and CNC vertical milling machines using conventional tool holders. No specialised force-control system is required.
Bundle Contents:
FS1 Size 1 — weld depths up to 3 mm
FS1 Size 2 — weld depths up to 6 mm
FS1 Size 3 — weld depths up to 8 mm
Product features and benefits:
- Complete FS1 size range in one set
- Suitable for standard vertical milling machines and CNC vertical machining centers
- Enables solid-state joining without melting the base material
- Produces welds with low distortion and minimal shrinkage
- No requirement for shielding gas, filler material, or consumables
- Typically results in improved fatigue performance and corrosion resistance in the weld zone
- One tool for each common aluminium weld-depth range
Technical Details
| Tool type | Friction Stir Welding Tool Set |
|---|---|
| Model | FS1 Tool Set, Size 1–3 |
| Contents | FS1 Size 1, Size 2 and Size 3 (one of each) |
| Material | AISI H13 tool steel |
| Application | Aluminium alloys and other non-ferrous metals |
| Weld depth range | Up to 3 mm / 6 mm / 8 mm |
| Machine compatibility | Vertical milling machines and CNC vertical machining centers |
| Tool holders | Standard / conventional holders |
| Process | Solid-state friction stir welding |
| Cooling | Without internal cooling |

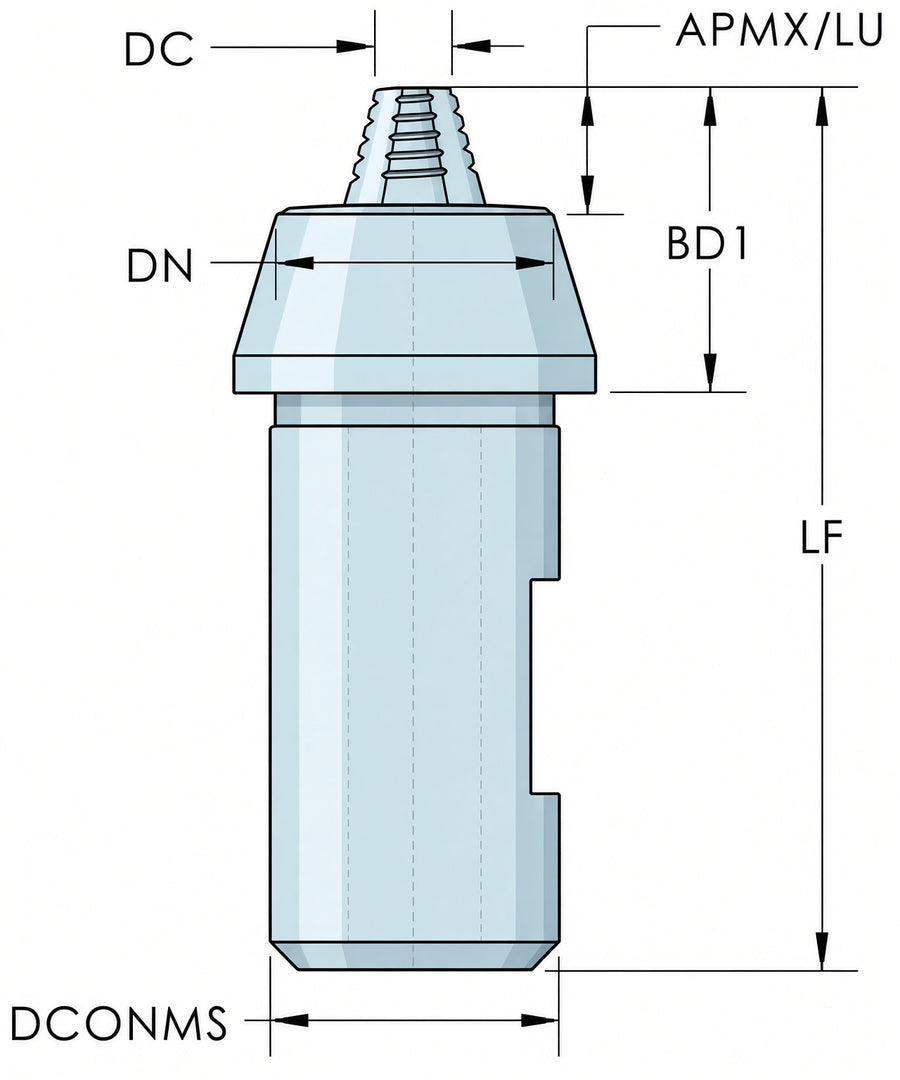

DATA IN TECHNICAL ILLUSTRATION:
Product Family (1)
Columns
Product
DC
DN
DCONMS
APMX
