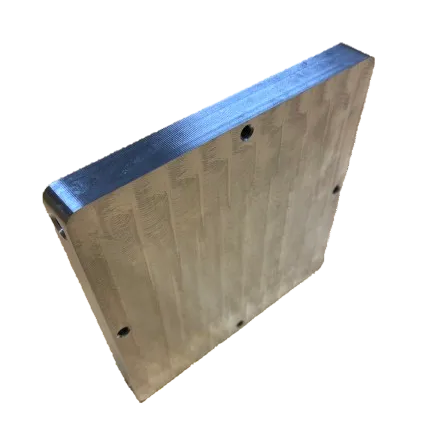

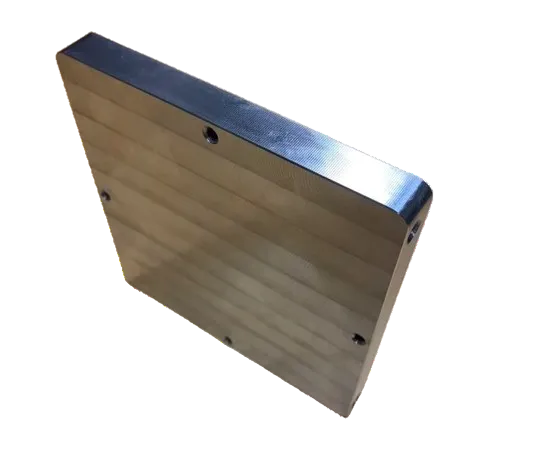

This liquid cold plate is manufactured in Sweden by MEISTERFABRIK using CNC machining and friction stir welding (FSW). It is produced from AW6082-T6 aluminum alloy and features an embedded pin-fin internal geometry.
Key Specifications

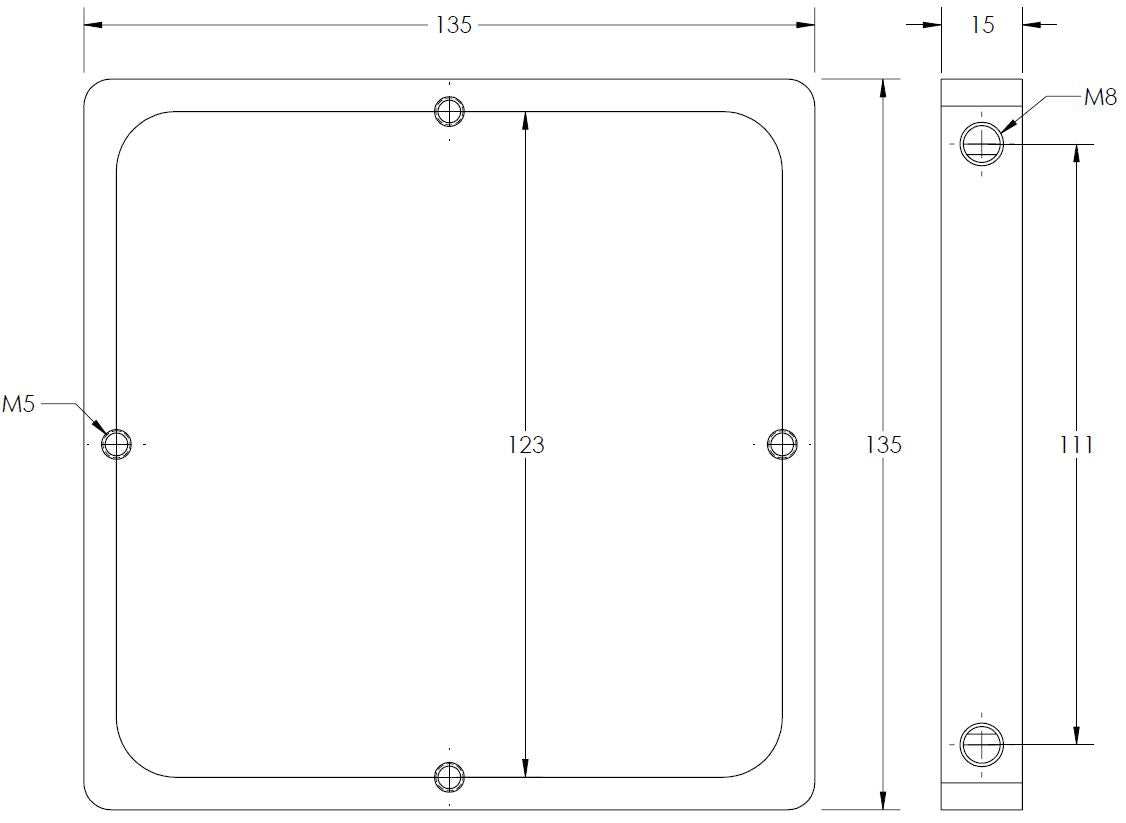

• Dimensions: 135 mm × 135 mm × 15 mm
• Material: AW6082-T6 aluminum alloy
• Cooling structure: Embedded pin-fin array, precision machined for increased surface area and turbulence
• Ports: 4 × M8 threaded inlet/outlet connections
• Mounting: 4 × M5 dual-sided through-holes
• Sealing: Friction stir welded (FSW) for hermetic, leak-resistant performance
• Hydraulic performance: Simulated pressure drop of 0.2 bar at 15 l/min water flow
• Thermal performance: Simulated heat dissipation capacity of 2000 W
• Manufacturing: Fully CNC machined with FSW sealing, produced in Sweden
The design aims to provide effective heat transfer with relatively low pressure drop, suitable for applications requiring reliable liquid cooling of power electronics or similar high-heat components.
Intended Applications
Suitable for thermal management in power electronics (IGBT modules, inverters, converters), EV/hybrid systems, laser equipment, RF amplifiers, and R&D prototyping. The plate is compatible with standard M8 fittings and can be integrated into custom cooling loops.
Note
Fittings, tubing, coolant, and mounting hardware are not included. Performance values are based on CFD simulation and should be validated under actual operating conditions.
