Model-to-Drawing, Mechanical Design Service

Turn your 3D model into an engineering drawing so sharp, it could cut through steel (metaphorically—leave the actual cutting to the waterjet). With our "Model-to-Drawing, Mechanical Design Service," your design insights will evolve into professional-grade drawings that meet ASME or ISO standards. Whether you’re impressing your supplier or flexing your technical chops during trivia night, we’re here to deliver.

What You’re Getting:

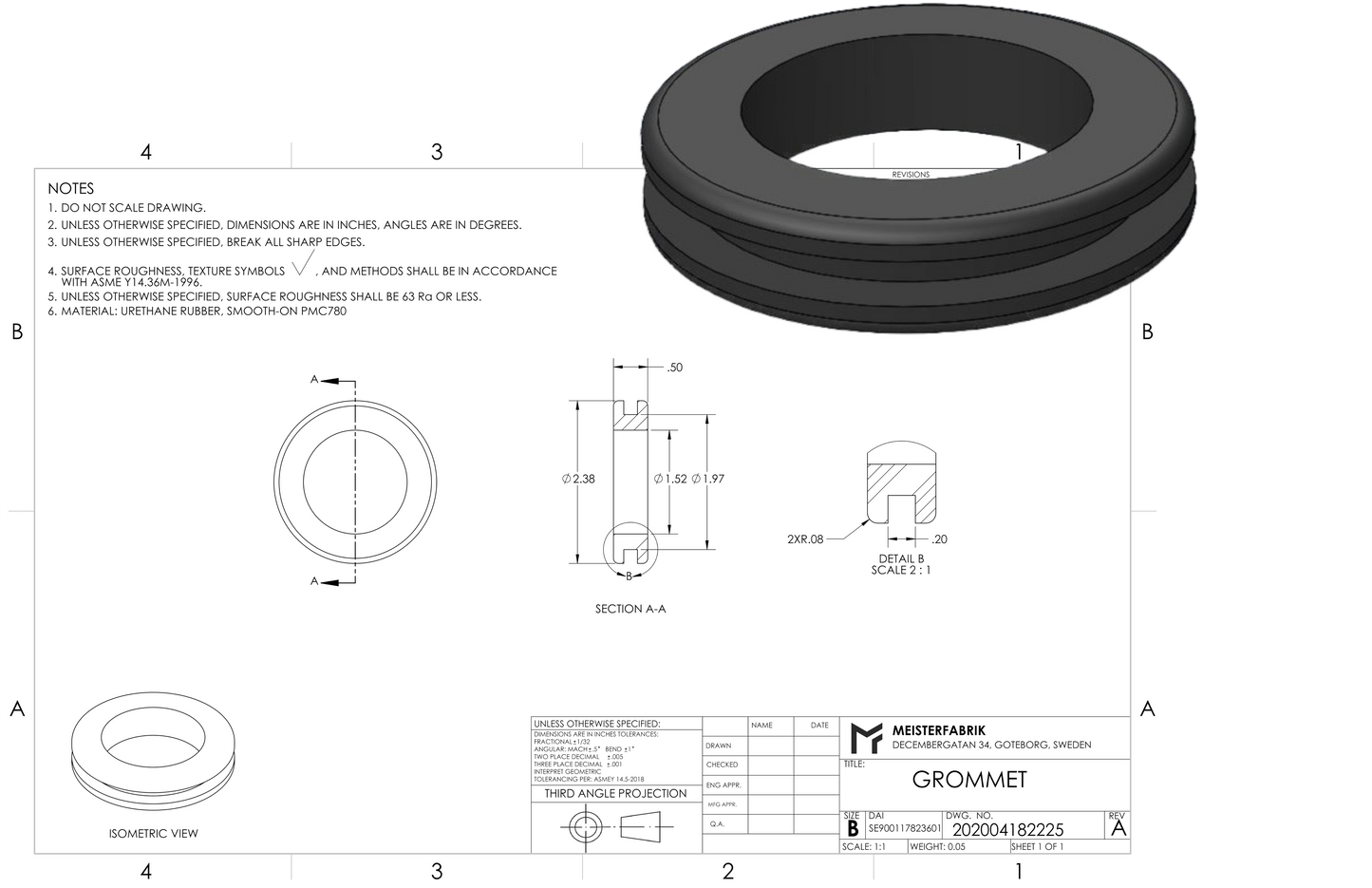

• Professional Engineering Drawings: Clear, precise, and ready for action.
• Standards Compliance: ASME Y14.5 or ISO 1101—because life’s easier when everyone’s speaking the same engineering language.

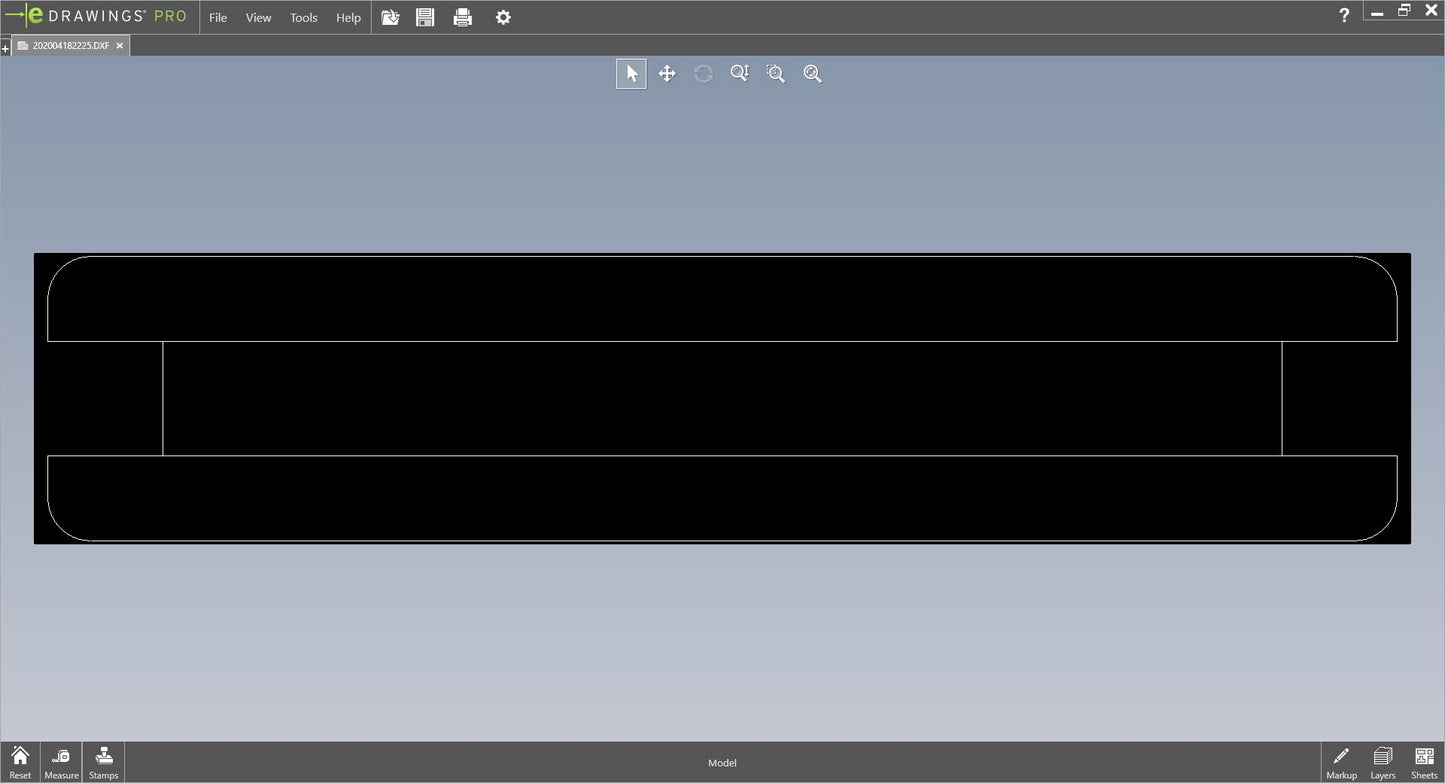

• Formats That Work: PDF for your supplier, DXF for your waterjet.
• Custom Features: Tolerances, annotations, and bills of materials, crafted to make your machinist’s life easier (and maybe even better).

What You’re Not Getting (Fixed Price Means Setting Boundaries):

• Models with more than 10 unique components—we’re here for straightforward results, not an engineering decathlon.
• "I scribbled this during lunch, can you turn it into something usable?"—Sure thing, just add our Sketch-to-Model Service to your order first.
• Non-mechanical components—circuits and non-mechanical doodads are outside our wheelhouse.
• Unlimited revisions—two rounds. After that, we figure you’ve reached enlightenment on what you want.
• Overly complex surfacing—if it looks like it belongs in a futuristic art gallery, expect pricing to match the vibe.

Why Us?
Because your machinist shouldn’t have to play detective to understand your design. And you deserve documentation that says, “We mean business.” From PDFs to charm your supplier to DXFs that keep your waterjet purring, we’re here to make your designs shine—clear, functional, and unapologetically professional.
