Collection: Friction Stir Welding (FSW) Tools

Friction Stir Welding (FSW) is a solid-state joining process invented by The Welding Institute (TWI) in 1991. It involves a non-consumable rotating tool with a pin and shoulder that is pressed into the joint line of two workpieces. The tool generates frictional heat, softening the material below its melting point (typically 80–90% of its recrystallization temperature). As the tool moves along the joint, it stirs the softened material together, creating a solid-state weld with fine-grain microstructure and high mechanical integrity.

FSW avoids common fusion welding defects such as porosity and cracking. It is widely used for aluminum alloys, titanium, and other materials in industries such as aerospace, automotive, and marine, with significant advancements driven by NASA for aerospace applications like cryogenic fuel tanks.

MEISTERFABRIK has conducted exploratory testing of the FS1 Friction Stir Welding (FSW) Tool on various materials, including 110 Cold Rolled Copper Alloy (H02 Temper), 6061 Aluminum (T6511 Temper), and 6082 Aluminum, to assess its compatibility and performance. While the tool demonstrated promising results across these alloys, each material requires tailored parameters to achieve optimal welds, emphasizing the importance of proper setup and control.

Material-Specific Observations

• Copper (110 Cold Rolled Copper Alloy, H02 Temper):
  Copper’s high thermal conductivity caused significant heat buildup during testing, requiring active thermal management to avoid overheating the workholding equipment. The FS1 tool successfully joined the material, but users should be aware of the potential for thermal-related challenges and carefully monitor the process.
• 6061 Aluminum (T6511 Temper):

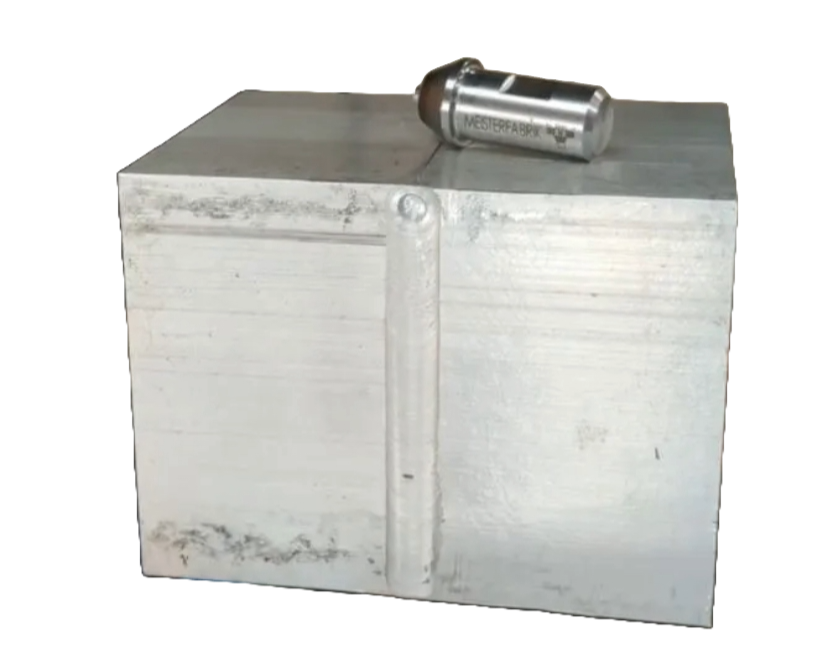

  This alloy performed well with minimal heat generation under standard parameters. The FS1 tool produced clean, defect-free welds without requiring additional cooling measures, suggesting it is highly compatible with 6061 aluminum when used within recommended settings.
• 6082 Aluminum:
  Testing with both simple (straight-line) and complex (tricordal) tool paths showed stable welds when using a straightforward approach, with the FS1 Size 2 tool performing efficiently. However, the tricordal path generated excess heat, increasing cycle times without improving weld quality. For 6082 aluminum, simpler welding strategies may yield better outcomes.

Key Considerations

• Each material exhibits unique thermal and mechanical behavior during friction stir welding. Proper calibration and process control are essential to ensure consistent results.
• The FS1 tool performed well within the controlled testing conditions, but real-world applications may involve additional variables, such as differing equipment setups, operator techniques, or material properties.
• For demanding materials like copper, users should prioritize thermal management strategies and ensure their workholding equipment is suitable for high-heat scenarios.

While the FS1 tool is designed to handle a range of materials effectively, MEISTERFABRIK advises users to perform their own testing and parameter optimization to confirm suitability for specific applications. For further guidance, please consult the FS1 tool documentation or contact our support team.

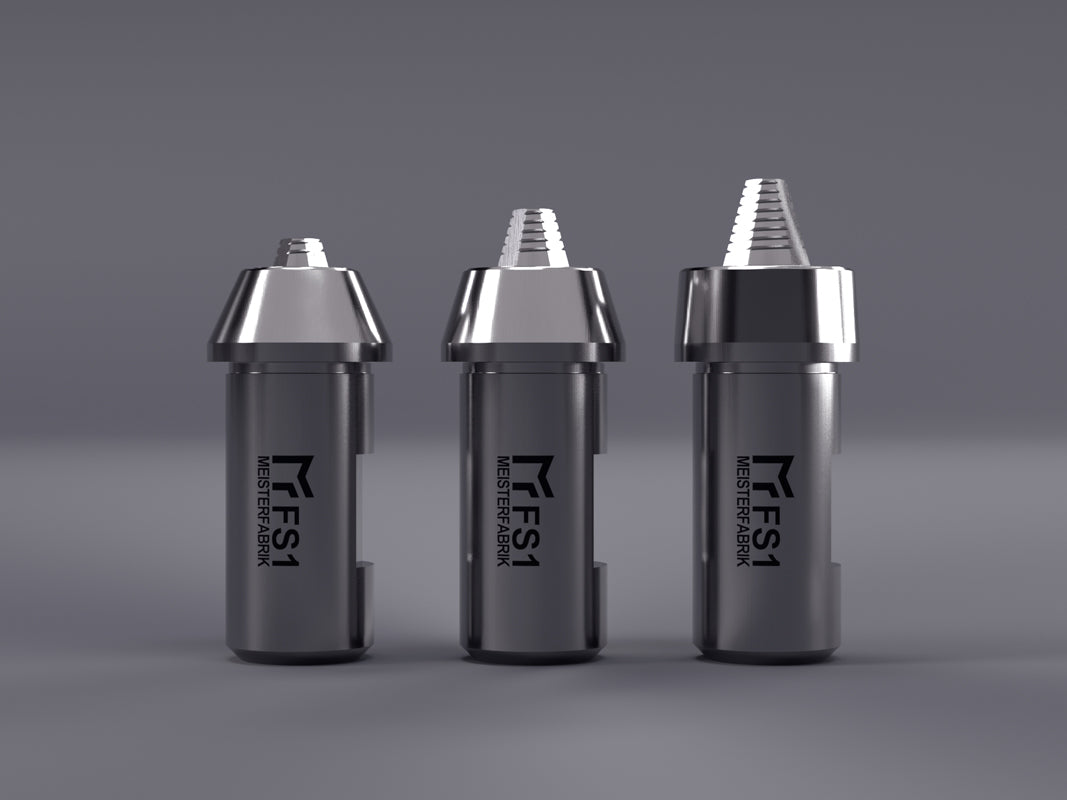

The MEISTERFABRIK FS1 friction stir welding (FSW) tool is designed to be a durable and long-lasting solution for a wide range of applications. Under consistent use, the tool can withstand the rigors of the FSW process and maintain its performance over time.

The tool life of friction stir welding tools can be compared to that of an endmill, which is a common cutting tool used in machining operations. While endmills typically have a limited tool life and may need to be replaced frequently, the MEISTERFABRIK FS1 can, under ideal conditions, weld for several kilometers.

Long-Lasting Performance

In fact, the tool life of the MEISTERFABRIK FS1 is often measured in kilometers, rather than hours or cycles. This is due to the unique nature of the FSW process, which uses a rotating tool to generate heat and plasticize the material, rather than relying on a consumable electrode or filler metal.

Factors Affecting Tool Life

While the MEISTERFABRIK FS1 has a long tool life, its performance can still be affected by various factors, including:

• Material type and thickness
• Welding speed and axial force
• Tool rotation speed and direction
• Cooling and heat management

By optimizing these factors and following proper maintenance procedures, the tool life of the MEISTERFABRIK FS1 can be maximized.

Typical Surface Roughness

With good welding parameters, the surface roughness of the weld typically ranges between:

• 0.8 to 3.2 μm (micrometers)
• 32 to 126 μin (microinches)

Optimal Welding Parameters

To achieve the best possible surface finish, it is essential to optimize the welding parameters, including:

• Welding speed
• Tool rotation speed
• Tool pressure
• Cooling and heat management

Post-Weld Processing

While the surface finish of welds produced by the MEISTERFABRIK FS1 is typically smooth, some post-weld processing may be necessary to remove flash formation. This may include:

• Light filing, machining, or grinding to remove any minor flash or imperfections
• Polishing or buffing to achieve a high-gloss finish

The MEISTERFABRIK FS1 friction stir welding (FSW) tool is designed to be a versatile and adaptable solution for a wide range of applications. In most cases, the FS1 can be easily integrated into your current equipment setup with minimal modifications.

Compatibility with Manual and Power Feed Milling Machines

The MEISTERFABRIK FS1 has been thoroughly tested and is compatible with both manual and power feed. This means that you can easily apply the same metal cutting knowlegde to aluminium welding.

Tool Holder Compatibility

The MEISTERFABRIK FS1 can be used in a variety of tool holders, including:

• R8
• CT40
• SK40
• BT40

These tool holders can be equipped with different styles of collets or holders, such as:

• ER
• 1/2 inch endmill holders
• Shrinkfit

Minimal Equipment Requirements

To ensure optimal performance, the MEISTERFABRIK FS1 requires a minimum of:

• 2 HP (horsepower) or 1.5 kW (kilowatts) of power
• 2000 RPM (revolutions per minute) of spindle speed
• 20 Nm (newton-meters) or 14.75 lbf-ft (pound-feet) of torque
• 1000 N (newtons) or 225 lbf (pounds) of axial load

Additional Thermal Considerations

In heavy welding applications, additional heat sinking or cooling equipment may be necessary to ensure optimal performance and prevent overheating of the work and tool holding equipment. This may include the use of cooling systems, heat exchangers, or other thermal management solutions, or backing with high thermal conductivity (aluminum).

If your milling machine meets these requirements, you can readily integrate friction stir welding process in your shop.

The simplicity of the preparation process makes FSW an attractive option for a wide range of applications, from aerospace and automotive to construction and manufacturing. As the process requires minimal preparation to produce quality aluminum welds. When using the MEISTERFABRIK FS1 FSW tool, the preparation process is straightforward and efficient.

Basic Preparation Requirements

To ensure successful FSW with the MEISTERFABRIK FS1, the following basic preparation steps are recommended:

• Secure Fixation: Properly and securely fix the base material to prevent movement during the welding process, just as any typical machined part.
• Equipment Settings: Set the MEISTERFABRIK FS1 to the appropriate feed and speeds for the specific material being welded. This ensures optimal weld quality and minimizes the risk of defects.
• Surface Cleaning: While not strictly required, light cleaning of the workpiece surface is recommended to minimize contamitation from dirt and oil.
• Proper Heat Sinking or Cooling: Ensure that the workpiece is properly heat sunk or cooled, where necessary, to avoid thermal damage to the workholding tools and other equipment.

By following these basic preparation steps, you can achieve high-quality welds with the MEISTERFABRIK FS1 FSW tool.
